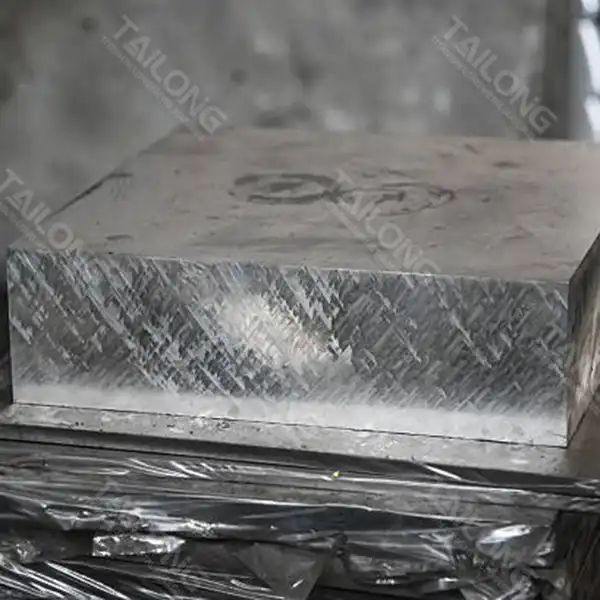

Grade 5 Titanium Forging Block: High-Performance Material for Demanding Applications

Product Overview:

Our Grade 5 Titanium Forging Block, also known as Ti-6Al-4V (UNS R56400), is the most widely used α+β dual-phase titanium alloy forging stock, engineered to deliver an exceptional balance of high strength, lightweight performance, corrosion resistance, and processability.

It is produced through advanced vacuum arc remelting (VAR) or electron beam (EB) melting, followed by precision forging, this forging block is designed for critical applications requiring superior structural integrity and reliability across aerospace, medical, marine, and industrial sectors. They meet with international standards including ASTM B381, AMS 4928, and ISO 5832-3.

Technical Specifications:

Heat Treatment Options:

Annealing: 700-800°C (1292-1472°F) for 1-2 hours, air or furnace cooled—ideal for balancing strength and ductility.

Stress Relief Annealing: 538-649°C (1000-1200°F) for 1-8 hours, air cooled—reduces residual stresses from forging.

Solution Treatment & Aging (STA): 913-954°C (1675-1750°F) for 1 hour, water quenched; followed by 524-552°C (975-1025°F) for 4-8 hours, air cooled—maximizes tensile strength and hardness.

Typical Applications:

Aerospace & Defense: Jet engine compressor blades, discs, rings, airframe structures, helicopter rotor hubs, rocket engine cases, and ballistic protection components—leveraging high strength-to-weight ratio and temperature resistance.

Medical Devices: Orthopedic implants (hip stems, knee components), dental implants, and surgical instruments—utilizing biocompatibility and corrosion resistance (ELI grade available).

Marine & Offshore: Subsea connectors, valves, offshore platform components, and deep-sea diving equipment—resisting seawater corrosion and harsh marine environments.

Industrial & Chemical Processing: Pressure vessels, heat exchangers, and chemical reactor components—withstanding corrosive chemicals and high-pressure operations.

Automotive & Racing: High-performance engine parts, suspension components, and exhaust systems—reducing weight while maintaining structural strength.

Quality Assurance:

Standards Compliance: ASTM B381 (forgings), AMS 4928 (annealed forgings), AMS 4965 (STA forgings), ISO 5832-3 (medical grade), DIN 3.7165, and GB/T TC4 (Chinese equivalent).

Testing & Inspection: 100% dimensional inspection; chemical composition analysis (PMI); tensile, yield, and elongation testing (ASTM E8/E8M); hardness testing; fatigue testing (ASTM E466); and corrosion testing (ASTM G61).

Certifications: Mill Test Report (MTR) per EN 10204 3.1/3.2 included with every order; CE/FDA certifications available for medical applications.

Production Process: Primary melting via VAR, EB, or plasma arc hearth melting (PAM), followed by one or two vacuum arc remelting steps to ensure purity; precision forging in controlled temperature zones to maintain grain uniformity.

		​​​​​​​

Key Features of Grade 5 Titanium Forging Block

1. High Strength-to-Weight Ratio: Titanium Grade 5 is renowned for its exceptional strength-to-weight ratio, making it ideal for industries that require lightweight but strong materials, such as aerospace and automotive applications.

2. Excellent Corrosion Resistance: Grade 5 titanium exhibits outstanding resistance to corrosion in various harsh environments, including seawater and industrial chemicals, ensuring longevity and reducing the need for maintenance.

3. High Temperature Resistance: With its ability to withstand extreme temperatures, Grade 5 Titanium Forging Blocks are ideal for use in high-temperature applications, including engine components and exhaust systems.

4. Versatility: The alloy can be easily machined, forged, and welded, allowing for a wide range of applications in different industries such as aerospace, energy, automotive, and electronics.

5. Durability and Reliability: Grade 5 titanium maintains its integrity even under high stress, making it an ideal choice for demanding applications in sectors like aerospace, automotive, and power generation.

Why Choose Us?

At Shaanxi Tilong Metal Material Co., Ltd., we take pride in providing top-quality Grade 5 Titanium Forging Blocks that meet international standards. Here’s why we stand out:

1. High-Quality Materials: Our Grade 5 Titanium Forging Blocks are sourced from top-grade raw materials, ensuring consistent quality in every batch.

2. Precision Manufacturing: With advanced manufacturing processes and quality control measures, we guarantee that every forging block meets the specific needs of your application.

3. Customization: We offer tailored solutions to meet your exact specifications, ensuring you receive the ideal product for your project.

4. Timely Delivery: We understand the importance of deadlines in critical industries and provide reliable, on-time delivery to keep your operations on track.

5. Competitive Pricing: We strive to offer the most cost-effective solutions without compromising on quality, ensuring the best value for your investment.

Factory Show

Factory exterior

Factory interior

Production workshop

Raw materials

Raw material processing

Titanium sponge die casting

Production workshop

Production and processing

Production and processing

Detection

Main Products

Titanium Plate

Titanium Rod

Titanium Ingot

Titanium Forgings

Titanium Tube

Titanium Composite Plate

Application Areas

Power Industry

Petrochemical Industry

Machinery Manufacturing Industry

Pharmaceutical Industry

OEM Services

We offer comprehensive OEM services to meet your specific requirements. From customized dimensions to bespoke forging processes, we work closely with you to deliver the perfect product for your needs. Our flexibility and attention to detail ensure that every order is precisely tailored to your application, making us the ideal partner for long-term collaborations.

Frequently Asked Questions (FAQs)

Q: What is the maximum temperature that Grade 5 titanium can withstand?

A: Grade 5 titanium can withstand temperatures up to 400°C (752°F) in continuous service, with higher temperatures being possible in intermittent use.

Q: Can Grade 5 Titanium Forging Blocks be welded?

A: Yes, Grade 5 titanium can be welded using various techniques, including TIG welding and MIG welding, making it a versatile material for a variety of applications.

Q: What is the lead time for ordering Grade 5 Titanium Forging Blocks?

A: Our standard lead time is 2-4 weeks, depending on the size and quantity of your order. For urgent requirements, we offer expedited shipping options.

Q: Is Grade 5 titanium suitable for high-fatigue applications?

A: Yes, Grade 5 titanium offers excellent fatigue resistance, making it ideal for components that undergo cyclic loading, such as aircraft parts and engine components.
