Titanium Seamless Tube: Bending and forming limits?

Titanium seamless tubes' remarkable qualities—such as their high strength-to-weight ratio, corrosion resistance, and heat tolerance—have caused a revolution in numerous fields. However, engineers and manufacturers have challenges when trying to form and bend these tubes due to the material's unique qualities . In order to get the most of titanium seamless tubes in different situations, it is essential to know their bending and shape limitations. Titanium seamless tubes are complex, therefore this blog article will go into the specifics of dealing with them, including what makes them formable, how to work around their restrictions, and how to get the shape you want without damaging the material. Pros may learn approximately these challenges and make educated judgments when creating and fabricating components utilizing titanium consistent tubes, guaranteeing ideal execution and life span in challenging conditions.

​​​​​​​

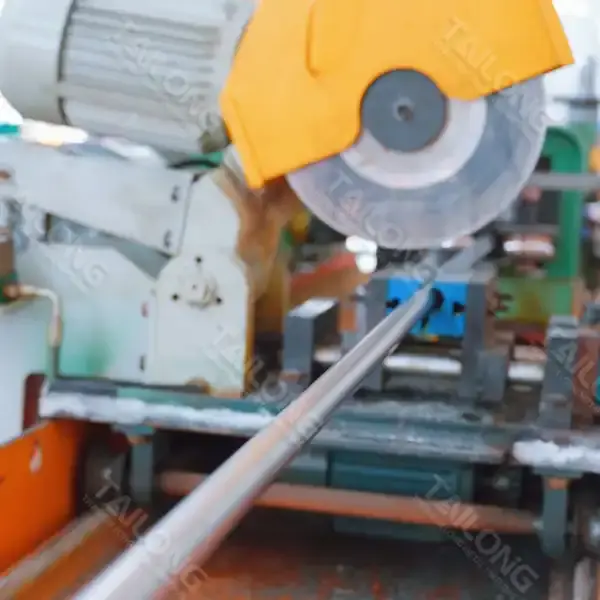

What are the key factors affecting the bending of titanium seamless tubes?

Material properties and their impact

The bending of titanium seamless tubes is significantly influenced by the material's inherent properties. Although there are several uses for titanium due to its high strength-to-weight ratio, bending the metal can be difficult. How a material reacts to bending forces is heavily influenced by its yield strength and elastic modulus. When it comes to titanium alloys, the ductility and formability are also impacted by the crystal structure. For instance, commercially pure titanium (Grade 2) typically exhibits better formability compared to higher-strength alloys like Ti-6Al-4V (Grade 5). To manage and forecast how titanium seamless tubes will behave during bending operations, it is crucial to understand these material characteristics.

Tube dimensions and their effects

Titanium seamless tubes' bending properties are strongly affected by their dimensions, particularly their wall thickness and diameter. Generally, tubes with larger diameters and thinner walls are more challenging to bend without introducing defects such as wrinkles or ovalization. Tube bending ability is strongly related to the D/t ratio, which is the ratio of the tube's outer diameter to its wall thickness. Tubes with higher D/t ratios are more prone to deformation and require special considerations during the bending process. Conversely, tubes with lower D/t ratios tend to be more resistant to deformation but may require higher bending forces. Successfully bending titanium seamless tubes while preserving their structural integrity calls for meticulous consideration of specific dimensional variables.

Bending equipment and techniques

When it comes to creating titanium seamless tubes, the bending equipment and techniques that are chosen are crucial. Rotating draw bending, compression bending, and roll bending are common methods for working with titanium. There are advantages and disadvantages to each of these methods. More complex bend geometries and tighter tolerances are both made possible by modern CNC-controlled bending machines, which provide exact control over bending parameters. The cross-sectional shape of the tube can be preserved and collapsed while bending with the use of mandrels, wiper dies, and pressure dies. Methods such as heat-assisted bending can temporarily alter the material's properties, which improves its formability. To achieve the best results, it is crucial to choose the right equipment and technique according to the titanium seamless tube's specifications and the desired bend characteristics.

How does the grade of titanium affect the forming limits of seamless tubes?

Commercially pure titanium grades

Commercially pure (CP) titanium grades, such as Grade 1, 2, 3, and 4, offer varying levels of formability in seamless tubes. These grades have a reasonable amount of strength and are renowned for being very resistant to corrosion. Grade 1 titanium, being the softest and most ductile, exhibits the highest formability among CP grades, making it ideal for applications requiring complex forming operations. As the grade number increases, the oxygen content rises, leading to higher strength but reduced formability. Titanium seamless tubes of grade 2 are well-liked in many fields since they are both strong and malleable. To successfully shape CP titanium tubes without damaging the material or adding faults, it is essential to take into account the grade-specific forming restrictions.

Alpha and near-alpha titanium alloys

Alpha and near-alpha titanium alloys, such as Ti-3Al-2.5V (Grade 9), offer a combination of good formability and increased strength compared to CP grades. These alloys' enhanced formability is due in part to the fact that they retain a mostly alpha crystal structure. Titanium seamless tubes made from these alloys can undergo more severe forming operations while still maintaining dimensional stability. However, they may require higher forming forces compared to CP grades due to their increased strength. Properties like minimum bend radius and work hardening rate are affected by the presence of alloying elements like vanadium and aluminum, which impact the material's behavior during forming. Understanding these alloy-specific characteristics is essential for optimizing the forming process of alpha and near-alpha titanium seamless tubes.

Alpha-beta titanium alloys

Alpha-beta titanium alloys, with Ti-6Al-4V (Grade 5) being the most common, present unique challenges and opportunities in forming seamless tubes. These alloys offer significantly higher strength compared to CP and alpha alloys but at the cost of reduced formability. The mixed alpha-beta crystal structure results in a more complex deformation behavior during forming operations. Titanium seamless tubes made from alpha-beta alloys often require careful control of forming parameters, including temperature, strain rate, and tooling design, to achieve desired shapes without introducing defects. To tailor the alloy's characteristics to particular shaping needs, heat treatment procedures like solution treating and aging can be utilized. While the forming limits of alpha-beta titanium seamless tubes are generally more restrictive, advanced forming techniques and proper material conditioning can expand the range of achievable geometries.

What are the innovative techniques for overcoming titanium seamless tube forming limitations?

Heat-assisted forming methods

One effective technique that has emerged to circumvent these limitations in the production of titanium seamless tubes is heat-assisted forming. By increasing the material temperature during the forming process, these methods can significantly enhance the formability of titanium alloys. Hot forming, where the entire tube is heated to temperatures typically ranging from 700°C to 900°C, allows for more severe deformations with reduced spring-back. Warm forming, conducted at lower temperatures between 300°C and 600°C, offers a balance between improved formability and controlled oxidation. To facilitate complex forming procedures on titanium seamless tubes, localized heating techniques like induction heating or laser-assisted forming can selectively soften certain sections while leaving unheated regions strong. These heat-assisted methods can significantly improve the forming capabilities of titanium seamless tubes, but they require precise temperature control and specialized equipment.

Superplastic forming techniques

The production of intricate forms from seamless titanium tubes has been transformed by superplastic forming (SPF) processes. This method takes advantage of the superplasticity that some titanium alloys display under extreme conditions of heat and strain. During SPF, the titanium tube is heated to a temperature typically between 850°C and 950°C and then subjected to gas pressure, causing it to expand and conform to the shape of a mold. Using this technology, complex shapes and small radii can be formed, which would be very challenging, if not impossible, to accomplish using traditional forming techniques. Producing seamless, lightweight components with great dimensional accuracy is made possible with SPF, especially for alpha-beta titanium alloys like Ti-6Al-4V. Although SPF necessitates specialized equipment and meticulous process parameter control, it provides unmatched flexibility when it comes to developing and manufacturing intricate titanium seamless tube components.

Advanced surface treatments and lubrication

Contemporary surface treatments and lubrication processes are crucial in making titanium seamless tubes more formable. To make forming operations easier and less likely to cause galling, titanium can undergo surface treatments like nitriding, carburizing, or the use of specialist coatings. These treatments can significantly improve material flow and reduce surface defects. Additionally, the use of advanced lubricants specifically formulated for titanium forming can further reduce friction and heat generation at the interface between the tube and forming tools. Because of their resilience at high temperatures and pressures, solid lubricants like graphite-based compounds or molybdenum disulfide are commonly used. Some cutting-edge methods offer continuous lubrication all through the forming process by combining surface treatments with in-situ lubrication systems. Titanium seamless tube forming has the potential to be greatly enhanced by manufacturers through the optimization of surface conditions and lubrication. More complex shapes with high surface quality and precise dimensions can be made using this method.

Conclusion

The twisting and shaping of titanium consistent tubes display one of a kind challenges due to the material's properties, but inventive procedures and advances are ceaselessly extending the conceivable outcomes. Makers can break free of conventional limitations by learning almost the basic components affecting formability, taking into account the special properties of diverse titanium grades, and utilizing progressed forming procedures. As the request for high-performance titanium components develops over businesses, proceeded inquire about and advancement in shaping procedures will without a doubt lead to indeed more productive and flexible handling of titanium consistent tubes, opening modern roads for plan and application.

Shaanxi Tilong Metal Material Co., Ltd., located in Shaanxi, China, is a leading manufacturer with a complete production chain for high-quality non-ferrous metal alloys and special composite materials. Among the many sectors that benefit from Tilong's high-performance titanium and titanium alloys are the energy, aerospace, automobile, and electronics sectors. The company's dedication to innovation and quality is evident in its strict adherence to international standards throughout the production process. Tilong is set to implement a titanium product inventory ERP system worth 3 million USD by December 2024, enhancing its production and sales management capabilities. For inquiries or more information about our titanium seamless tubes and other products, please contact us at Tailong@tilongtitanium.com.

FAQ

Q: What is the minimum bend radius for titanium seamless tubes?

A: The minimum bend radius depends on factors such as tube diameter, wall thickness, and titanium grade. Generally, a bend radius of 3-5 times the tube diameter is achievable for most applications.

Q: Can titanium seamless tubes be formed at room temperature?

A: While some forming operations can be performed at room temperature, many complex shapes require elevated temperatures to enhance formability and reduce the risk of cracking.

Q: How does work hardening affect the forming of titanium tubes?

A: Work hardening increases the strength of titanium during forming, which can make further deformation more difficult. This effect must be considered when designing multi-step forming processes.

Q: Are there any special considerations for welding formed titanium tubes?

A: Yes, welding formed titanium tubes requires careful control of the welding environment to prevent contamination. Inert gas shielding and proper cleaning procedures are essential.

Q: Can titanium seamless tubes be formed using the same equipment as steel tubes?

A: While some equipment can be used for both materials, titanium often requires specialized tooling and more precise control due to its unique properties and sensitivity to contamination.

References

1. Peters, M., & Leyens, C. (2003). Titanium and titanium alloys: fundamentals and applications. John Wiley & Sons.

2. Lutjering, G., & Williams, J. C. (2007). Titanium (engineering materials and processes). Springer.

3. Yang, D. Y., et al. (2011). Tube hydroforming of titanium alloys. CIRP Annals, 60(1), 243-246.

4. Semiatin, S. L., et al. (2001). Workability of commercial purity titanium. Metallurgical and Materials Transactions A, 32(7), 1787-1799.

5. Gurrappa, I. (2003). Characterization of titanium alloy Ti-6Al-4V for chemical, marine and industrial applications. Materials Characterization, 51(2-3), 131-139.

6. Barnes, A. J. (2007). Superplastic forming 40 years and still growing. Journal of Materials Engineering and Performance, 16(4), 440-454.
