Name: High-Strength Industrial Titanium Plate
SKU: N/A

Welcome to Shaanxi Tilong Metal Material Co., Ltd., your trusted partner for high-quality titanium solutions. Your trust will be our driving force for progress. With your support and trust, we will provide you with a satisfactory result - high-quality products and excellent services. Give it a try and you'll have a different experience.

For example, Our High-Strength Industrial Titanium Plate is meticulously designed to meet the rigorous demands of industries such as aerospace, automotive, electronics, and energy. With exceptional strength, corrosion resistance, and heat tolerance, our titanium plates are the cornerstone of advanced manufacturing.

I. Product Introduction

High-strength industrial titanium plate is a premium metal material renowned for its exceptional mechanical properties, corrosion resistance, and lightweight characteristics, making it an indispensable choice for a wide range of industrial applications.

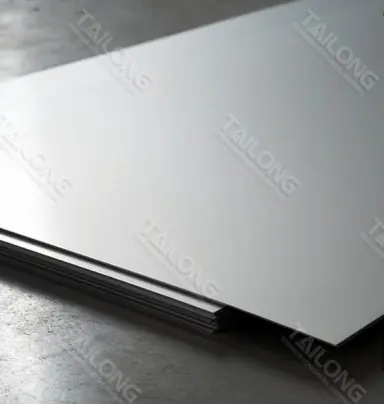

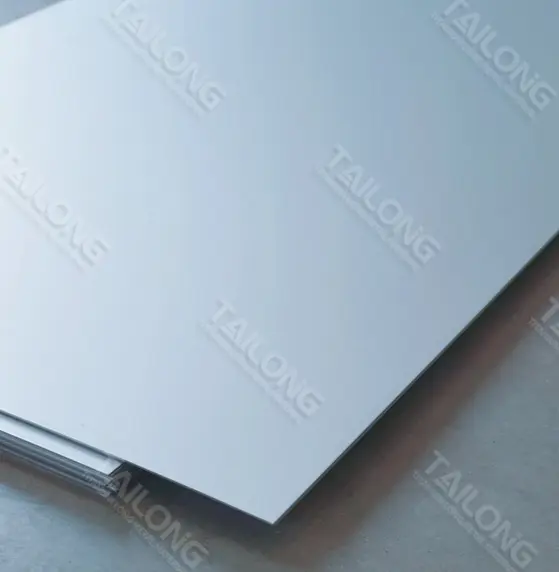

product-385-405 product-559-572

II. Key Features and Advantages:

1. Outstanding Mechanical Strength:

Crafted through precision rolling, heat treatment and other advanced processes, our high-strength titanium plates boast high tensile strength (up to 1,100 MPa depending on the grade) and excellent yield strength.

2. Excellent Thermal & Electrical Properties:

The plates have good heat resistance, maintaining structural integrity at temperatures ranging from -253°C to 600°C. They also feature low thermal conductivity and moderate electrical conductivity, suitable for applications requiring thermal insulation or controlled electrical transmission.

3. Superior Corrosion Resistance:

Titanium’s inherent ability to form a dense, self-healing oxide film on its surface enables the plates to resist corrosion from most acids, alkalis, salts, and marine atmospheres.

4. Lightweight & High Specific Strength:

With a density of only 4.51 g/cm³ (about 60% of steel), high-strength titanium plates offer an unparalleled strength-to-weight ratio, which is critical for industries where weight reduction is a priority, such as aerospace and automotive manufacturing.

5. Good Weld-ability & Machined-ability:

Our high-strength titanium plates can be easily welded using common methods like TIG and MIG welding, and can be machined into complex shapes through cutting, bending and punching processes, meeting the customized needs of different industrial projects.

6. Long Service Life: Minimizes maintenance costs and enhances durability.

III. Grades & Technical Specifications:

We can supply high-strength titanium plates in compliance with ASTM B265, GB/T 3621 and other standards, and the specifications generally including as below:

Grade	Tensile Strength (min)	Yield Strength (min)	Elongation (min)	Typical Applications
Ti-6Al-4V (GR5)	860 MPa	825 MPa	10%	Aerospace, automotive, medical devices
Ti-6Al-4V ELI (GR23)	860 MPa	795 MPa	10%	Implants, precision components
Ti-5Al-2.5Sn (GR6)	760 MPa	725 MPa	8%	High-temperature aerospace parts

IV. Technical Parameters:

Parameter	Range	Unit	Executive Standard
Thickness	0.5–300	mm	ASTM B265, GB/T 3621
Width	500–3000	mm	ASTM B265, GB/T 3621
Length	1000–6000	mm	ASTM B265, GB/T 3621
Tolerance	Hot-rolled (black surface), cold-rolled (bright surface), pickled, polished	mm	ASTM B265
Surface Finish	2B, BA, No.1, Pickled, Polished	—	Customer requirements
Heat Treatment	Annealed, Solution Treated & Aged	—	ASTM B265
Testing	Ultrasonic Testing (UT), Tensile Test, Corrosion Test, PMI	—	ASTM E213, ASTM E8

V. Quality Assurance:

All our high-strength industrial titanium plates undergo strict quality control, including ultrasonic flaw detection, chemical composition analysis, mechanical property testing and dimensional inspection. We provide 3.1/3.2 certification to ensure product quality meets customer requirements and international standards.

III. Applications Fields:

1. Aerospace: Aircraft fuselage components, engine parts, landing gear components

2. Petrochemical & Chemical Processing: Reactors, heat exchangers, pipelines, storage tanks

3. Marine Engineering: Ship hulls, offshore platform structures, seawater desalination equipment

4. Automotive Industry: Racing car frames, engine valves, exhaust systems

5. Medical Field: Surgical instruments, orthopedic implants

6. Energy Sector: Nuclear power plant components, wind turbine parts

Key Features

High Strength-to-Weight Ratio: Reduces overall weight without compromising structural integrity.
Exceptional Corrosion Resistance: Withstands harsh chemical and environmental conditions.
Heat Stability: Performs reliably in high-temperature applications.
Customizable Dimensions: Available in various sizes and thicknesses to meet your specific requirements.
Long Service Life: Minimizes maintenance costs and enhances durability.

Why Choose Us?

At Shaanxi Tilong Metal Material Co., Ltd., we prioritize quality and customer satisfaction. Here’s why we stand out:

Comprehensive Production Chain: From melting to annealing, ensuring consistency and excellence.
Advanced ERP System: Efficient inventory management with real-time tracking for seamless order fulfillment.
International Standards: Products comply with ASTM, ISO, and AMS certifications.
Technical Expertise: Customized solutions tailored to your exact needs.
Reliable Delivery: On-time shipping with strict quality checks at every stage.
