Medical Grade Titanium Wire

Name: Medical Grade Titanium Wire
SKU: N/A

Material: Made from Grade 1, Grade 2, or Ti-6Al-4V ELI (Grade 5 ELI) titanium, compliant with ASTM F67 / ASTM F136 medical implant standards.

Biocompatibility: Non-toxic and corrosion-resistant, ideal for long-term implantation in orthopedic, dental, and cardiovascular devices.

Wire Diameter Range: 0.1 mm – 3.0 mm, available in straight, coil, or spool formats for versatile medical processing.

Mechanical Strength: Tensile strength ranges from 240 MPa (Gr1) to ≥860 MPa (Gr5 ELI), with elongation ≥10%, ensuring flexibility and durability.

Surface Finish: Bright, pickled, or polished finish options; ultra-clean surface suitable for precision medical applications.

Send Inquiry download

Product Description

Product Overview

The Medical Grade Titanium Wire is manufactured from high-purity titanium materials such as Grade 1, Grade 2, and Grade 5 ELI (Ti-6Al-4V ELI), conforming to international medical standards like ASTM F67 and ASTM F136. Known for its excellent biocompatibility, corrosion resistance, and mechanical stability, this titanium wire is widely used in medical device manufacturing including dental braces, surgical sutures, orthopedic fixation, and cardiovascular applications.

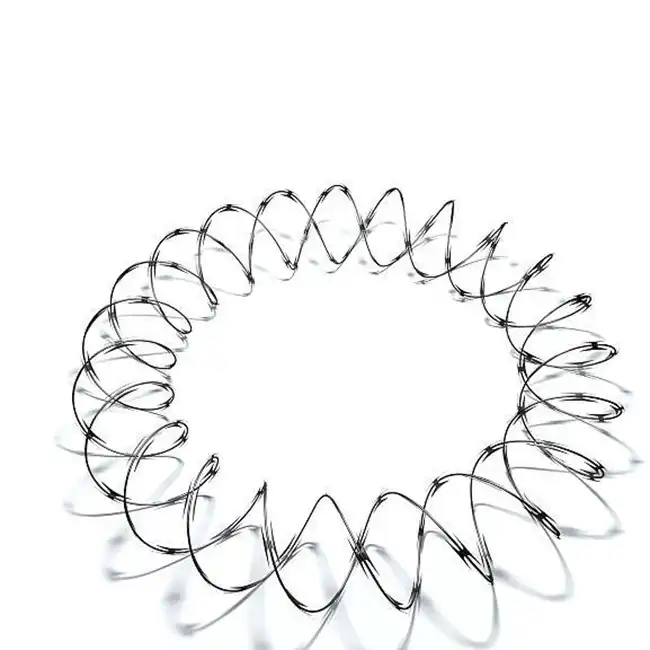

We offer a variety of wire forms including coil, spool, and straight length to suit different fabrication needs in medical industries.

Key Features

Biocompatible Material
100% non-toxic and suitable for long-term implantation. Safe for contact with bone and tissue.
Precision Diameter Control
Available in diameters from 0.1 mm to 3.0 mm, with tight tolerances for medical precision applications.
Superior Corrosion Resistance
Performs reliably in body fluids, including blood, saliva, and saline environments.
High Strength & Ductility
Grade 5 ELI wire offers tensile strength ≥860 MPa with elongation ≥10%, ensuring flexibility and long-term durability.
Sterilization Compatible
Supports all common sterilization methods (autoclave, gamma, ETO) without affecting mechanical properties.

Technical Specifications

Property	Grade 1	Grade 2	Grade 5 ELI (Ti-6Al-4V ELI)
Standard	ASTM F67	ASTM F67	ASTM F136
Diameter Range	0.1 – 3.0 mm	0.1 – 3.0 mm	0.2 – 3.0 mm
Tensile Strength	≥ 240 MPa	≥ 345 MPa	≥ 860 MPa
Elongation	≥ 24%	≥ 20%	≥ 10%
Density	4.51 g/cm³	4.51 g/cm³	4.43 g/cm³
Surface Finish	Bright / Pickled / Polished	Bright / Pickled / Polished	Bright / Polished
Packaging Form	Coil / Spool / Straight	Coil / Spool / Straight	Coil / Spool / Straight
