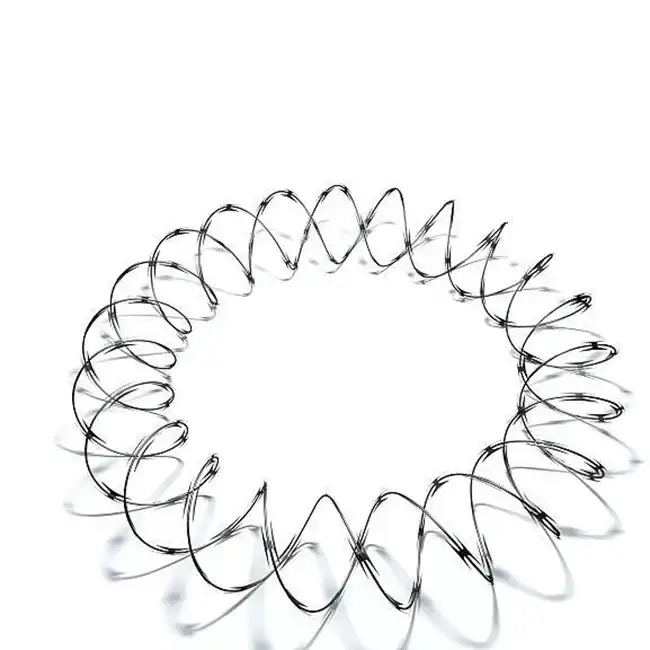

Custom Medical Grade Titanium Wire

Name: Custom Medical Grade Titanium Wire
SKU: N/A

Material: Made from Grade 1, Grade 2, or Ti-6Al-4V ELI (Grade 5 ELI) titanium, compliant with ASTM F67 / ASTM F136 medical implant standards.

Biocompatibility: Non-toxic and corrosion-resistant, ideal for long-term implantation in orthopedic, dental, and cardiovascular devices.

Wire Diameter Range: 0.1 mm – 3.0 mm, available in straight, coil, or spool formats for versatile medical processing.

Mechanical Strength: Tensile strength ranges from 240 MPa (Gr1) to ≥860 MPa (Gr5 ELI), with elongation ≥10%, ensuring flexibility and durability.

Surface Finish: Bright, pickled, or polished finish options; ultra-clean surface suitable for precision medical applications.

Send Inquiry download

Product Description

Product Overview

The Custom Medical Grade Titanium Wire is manufactured to meet the exact specifications of global medical device manufacturers. Using high-purity Grade 1, Grade 2, or Grade 5 ELI (Ti-6Al-4V ELI) titanium, our wire products are fully compliant with ASTM F67 and ASTM F136 standards for biocompatibility and implant safety.

We offer a wide range of diameters, surface finishes, tolerances, and packaging forms, enabling customers to create precision components for dental, orthopedic, cardiovascular, and surgical applications. Whether for mass production or prototype development, we support full OEM customization.

Key Features

Customized Material Grades
Available in commercially pure titanium (Gr1, Gr2) and titanium alloy (Gr5 ELI), depending on your application.
Flexible Diameter Options
Wire diameter range: 0.1 mm – 3.0 mm, with precision tolerances as tight as ±0.01 mm.
Surface Finishes Available
Bright, pickled, polished, or oxide-free surfaces to meet specific sterilization and bonding requirements.
OEM Services
Custom coil length, cut-to-length, spooled, or straight forms. Support for drawing, packaging, and private labeling.
Fully Biocompatible
Safe for long-term implantation; corrosion-resistant in all body fluids. Compatible with X-ray, CT, and MRI imaging.

Technical Specifications

Parameter	Description
Material Grades	Gr1, Gr2 (ASTM F67); Ti-6Al-4V ELI (ASTM F136)
Diameter Range	0.1 mm – 3.0 mm
Tolerance	±0.01 mm to ±0.05 mm (customizable)
Surface Finish	Bright, Polished, Pickled, Oxide-Free
Forms Available	Coil, Spool, Straight Length, Cut-to-size
Tensile Strength	Gr1: ≥240 MPa; Gr2: ≥345 MPa; Gr5 ELI: ≥860 MPa
Elongation	Gr1: ≥24%; Gr2: ≥20%; Gr5 ELI: ≥10%
Packaging	Cleanroom sealed, vacuum-packed, or OEM custom
