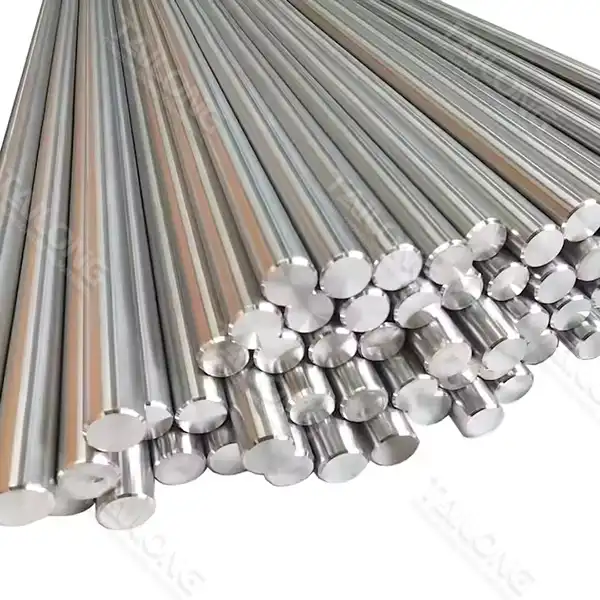

Implant Titanium Bar

Name: Implant Titanium Bar
SKU: N/A

Biocompatible Grade 5 Titanium (Ti-6Al-4V ELI) – Ideal for osseointegration and long-term implantation.

Superior Corrosion Resistance – Performs stably in body fluids; corrosion rate <0.5 μm/year.

High Strength, Lightweight Profile – Tensile strength ≥860 MPa with only 4.43 g/cm³ density.

Outstanding Fatigue Performance – Designed to endure repetitive biomechanical loads.

Sterilization & Imaging Compatible – Supports all medical sterilization methods and is X-ray/CT compatible.

Send Inquiry download

Product Description

Product Overview

The Implant Titanium Bar is a high-purity, medical-grade titanium alloy rod engineered for use in permanent human implants. Made from Grade 5 ELI Titanium (Ti-6Al-4V ELI), this bar delivers the optimal combination of biocompatibility, strength, corrosion resistance, and fatigue durability. It is widely used in orthopedic, dental, maxillofacial, and spinal implant systems where precision and long-term reliability are essential.

This titanium bar is suitable for CNC machining and CAD/CAM milling to produce customized implants and components for direct body contact.

Key Features

Biocompatible Grade 5 Titanium (Ti-6Al-4V ELI)
Complies with ASTM F136 / ISO 5832-3 for long-term implantation with excellent tissue compatibility.
Corrosion Resistant in Body Fluids
Maintains structural integrity in corrosive environments like blood, saline, and interstitial fluid (<0.5 μm/year corrosion rate).
High Strength & Low Density
Tensile strength ≥ 860 MPa; density only 4.43 g/cm³—perfect for load-bearing implants with reduced weight.
Superior Fatigue Life
Withstands millions of cycles under dynamic stress, ideal for orthopedic and spinal load transmission.
Sterilization & Imaging Compatible
Suitable for steam, gamma, and ETO sterilization; radiolucent for post-operative imaging (X-ray, CT, MRI safe).

Technical Specifications

Parameter	Value
Material	Ti-6Al-4V ELI (Grade 5 ELI Titanium)
Standard	ASTM F136 / ISO 5832-3
Diameter Range	6 mm – 60 mm
Length Range	100 mm – 3000 mm
Tensile Strength	≥ 860 MPa
Yield Strength	≥ 750 MPa
Elongation	≥ 10%
Surface Finish	Turned, Polished, or Custom Machined
Machinability	Excellent – CNC and CAD/CAM compatible
Tolerance	±0.05 mm (custom tolerances available)
